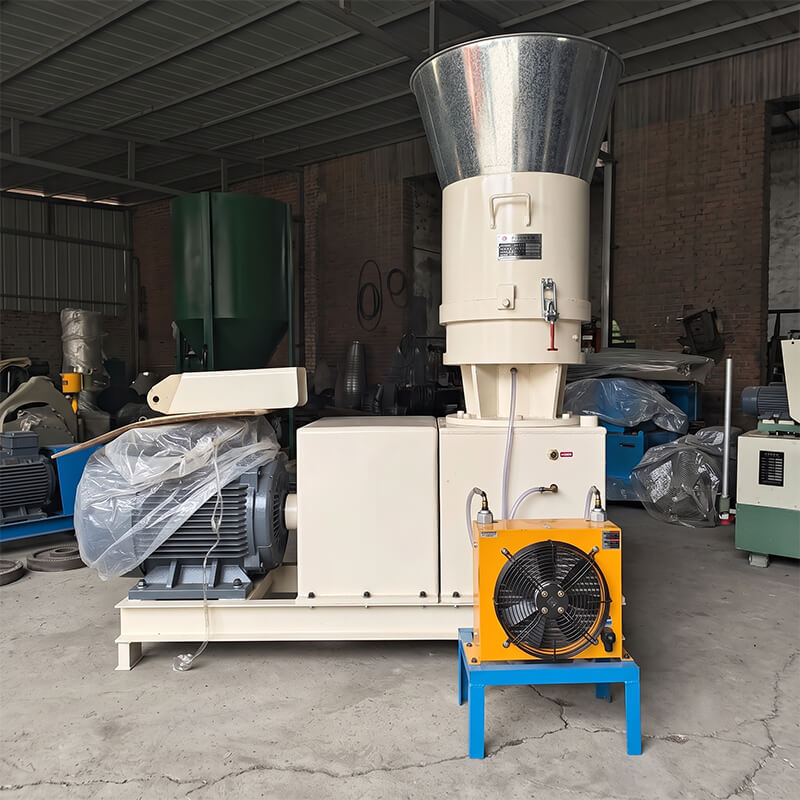

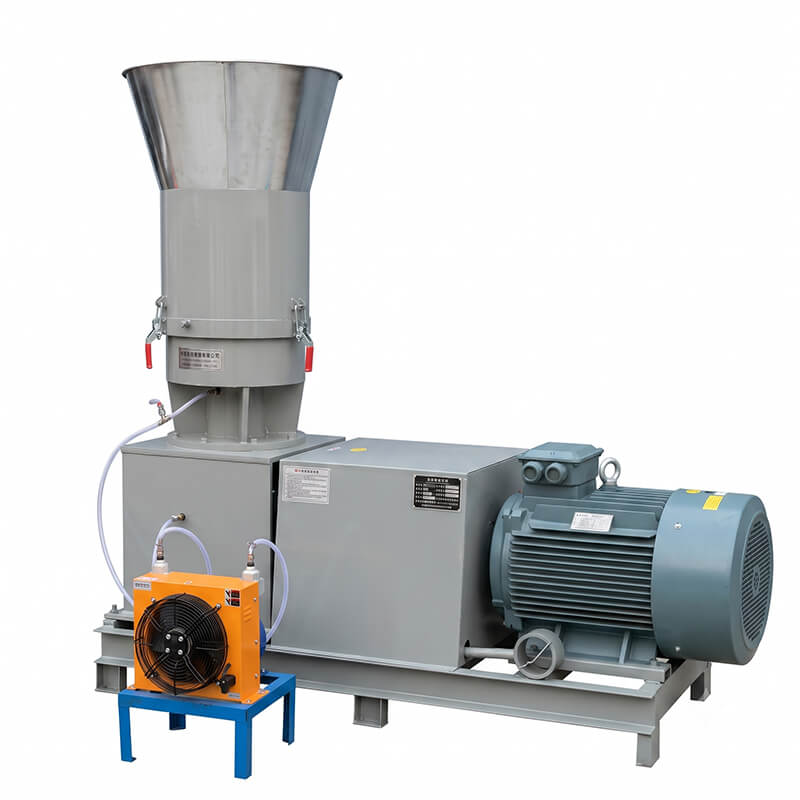

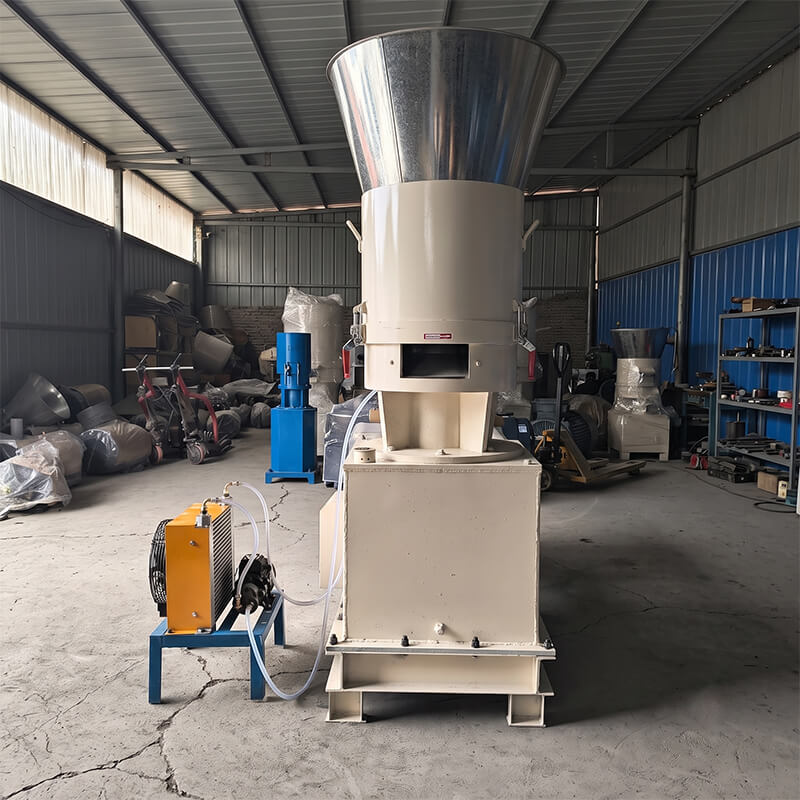

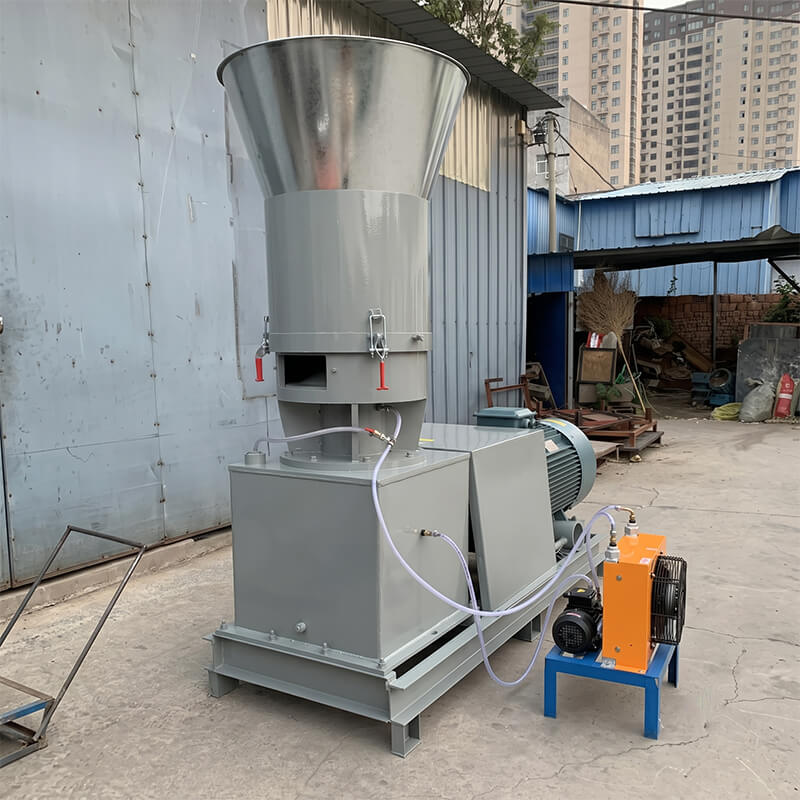

Model 500 Heavy-Duty Flat Die Feed Pellet Machine

The Model 500 flat die feed pellet machine is designed for ultra-heavy-duty commercial use and global export. It is engineered for 100,000-ton scale breeding bases, mega feed processing enterprises, export hubs, and agricultural waste recycling projects. It perfectly fills the capacity gap between Model 400 flat die machines and large ring die pellet mills. Equipped with a 500mm ultra-wide, heavy-duty flat die, versatile high-power options, and a dynamic die/straight roller design, it efficiently processes concentrates, high-fiber materials, and organic fertilizers, ensuring maximum capacity, durability, and smart operation.

Core Product Advantages

Targeting the core needs of 100,000-ton commercial processing and high-end cross-border export, the Model 500 focuses on ultra-large capacity, superior wear resistance, intelligent upgrades, all-scenario adaptability, and high-end export standards.

• 500mm Ultra-Wide Heavy-Duty Flat Die: Features a 4-stage vacuum quenching and deep carburizing process. Hardness is increased by 40% compared to the Model 400. The die is double-sided, extending its lifespan by 100% and significantly reducing replacement costs. Utilizing 4 conical reinforced rollers with a rotating-roller/stationary-die design, it increases pressure by 35%. Delivers a 99% pellet forming rate without blocking, perfectly handling 99.5% high-fiber materials and organic fertilizers. The effective width is 25% larger than the Model 400, supporting 96 hours of continuous heavy-duty operation.
• High-Power & Multi-Power Options: Offers five high-end power configurations. Standard equipped with a 75kW pure copper 6-pole motor (380V 3-phase). Also supports high-power diesel engines for off-grid sites and outdoor clusters. Features dual-differential and universal joint transmission with an enlarged 145 gearbox, achieving over 99.5% transmission efficiency. Integrated circulating oil pump and cooling fan ensure 24-hour continuous heavy-duty operation without overheating.
• Direct Processing (No Pre-treatment): Handles dry materials (moisture ≤18%) and wet materials (moisture ≤42%) directly. Standard materials like corn, soybean meal, bran, and rice husks require no crushing. High-fiber materials (straw, sawdust) and fermented manure require no drying. Smart constant temperature (80-95°C) ripening eliminates pathogens, improves digestion by 30-35%, and maintains pellet moisture at ≤11% for long-term storage and sea freight.
• Comprehensive Customization for Commercial Scenarios: Comes with replaceable flat dies (3.0-12mm). Adjustable scrapers prevent jamming from high-density materials. Supports global voltage customization (110V-480V), ISO/CE/FDA compliance, and export-grade wooden packaging/fumigation for seamless global transport.
• Intelligent Maintenance & Operation: Constructed with a heavy-duty, pure steel compact frame and universal wheels. Features one-button start, automated feeding/discharging, and a 7-layer safety protection system (overload, material shortage, over-temperature, leakage, blocking, over-voltage, jamming). Quick-release flat die takes less than 10 minutes to replace. The built-in high-pressure cleaning interface allows 2-3 operators to manage daily maintenance effortlessly.
• Cross-Border Export Adaptability: Made of export-grade alloy steel. Can be integrated with elevators and crushers to form a simple production line. Compatible with local cheap raw materials (straw, sawdust, manure) to maximize commercial profit margins. Suitable for pet food, organic fertilizer, and biomass pellets.

Detailed Technical Parameters

The precise parameters of the Model 500 flat die feed pellet machine are categorized into Standard Commercial, Enhanced Heavy-Duty, Diesel-Powered, Hybrid, and High-Power variants, fully accommodating ultra-large commercial and 100,000-ton breeding scenarios.

Application Scenarios & Scope

• 100,000-Ton Scale Livestock Farming: Ideal for intensive, standardized feed processing for poultry and livestock. Customizes pellet size and hardness based on growth stages. Low-temperature ripening ensures high digestion rates, reduces disease risks, and saves 40-45% feed compared to powder feed.
• Mega Commercial Processing: Suitable for massive feed mills and regional cooperatives. Achieves ultra-large batch production with 2-3 operators when paired with a simple production line. Utilizes local cheap raw materials to drastically expand profit margins.
• Cross-Border Export Processing: ISO, CE, and FDA compliant. Supports 110V-480V voltage customization and export packaging. Delivers stable, transport-friendly export-grade pellets for Southeast Asia, Africa, Europe, and South America, offering significant cost-performance advantages.
• Multi-Purpose Expansion: Processes biomass pellets, wood chips, pet food, aquatic feed, and organic fertilizers. Converts agricultural waste (straw, peanut shells, fermented manure) into profitable resources, ensuring green and sustainable development.
• Heavy-Duty Emergency & Outdoor Processing Clusters: Diesel and hybrid variants are ideal for remote off-grid locations, field breeding bases, or post-disaster emergency processing, ensuring uninterrupted operation.

Working Principle

• Feeding Stage: Raw materials (≤18% dry moisture, ≤42% wet moisture) are fed directly into the oversized inlet without pre-crushing. The smart feeder distributes them evenly over the 500mm die. Clearance is adjustable (2.2-3.0mm) via the top nut.
• Extrusion & Pelleting Stage: Driven by the heavy-duty transmission, 8 rollers (with scrapers) compress the material into the die holes. The intelligent closed-loop system maintains 80-95°C for optimal ripening and pathogen elimination, preserving material nutrition.
• Cutting & Discharging Stage: An adjustable heavy-duty stainless steel cutter sections the extruded feed into uniform lengths (5-40mm, 99.8% uniformity). Output moisture is ≤11%, ready for large-scale storage and export sea freight after cooling.
• Safety & Protection: Features a 9-layer safety system, emergency stop, and enclosed safeguards. Operates at ≤75dB with minimal vibration and no oil leakage, supporting 96-hour continuous runs.

Product Advantages & Value

• Ultra-Wide Die Upgrade: 500mm die increases contact area by 25% and capacity by 60% over Model 400. Achieves a 99% pellet forming rate with double the lifespan.
• Energy Efficiency & Cost Reduction: 99.5% transmission efficiency reduces energy consumption by 30%. Eliminates pre-treatment costs, saving labor and maximizing long-term profit margins.
• Omni-Scenario Adaptability: 5 power options (including diesel/hybrid) ensure flexibility. Replaceable dies (3-12mm) support diverse commercial and export orders.
• Intelligent & Durable Maintenance: Automated workflow requires only 2-3 operators. Quick-release die and automatic cleaning system minimize maintenance burdens.
• Nutritional Safety & High-End Quality: 80-95°C ripening improves nutrient absorption by over 50% for high-fiber materials, ensuring premium export-grade pellet quality.
• Cross-Border Adaptability: Multi-certification compliance and independent station SEO-friendly attributes ensure high international market competitiveness, facilitating global market expansion.

Daily Maintenance & Precautions

• Pre-Start Check: Verify connections, roller/die clearance (2.2-3.0mm), lubrication, and cooling systems. Grind the die with oil-mixed feed before first use to ensure smooth discharging.
• During Operation: Prevent metal or stones from entering the feeder. Adjust scrapers to avoid jamming. If blocked, shut down immediately—do not force restart.
• Post-Operation Cleaning: Clean residual materials daily using the high-pressure interface to prevent mold. Check for wear on rollers, dies, and scrapers, replacing them if necessary.
• Regular Servicing: Lubricate transmission parts regularly. Inspect circuits and cooling systems monthly; perform comprehensive maintenance quarterly.
• Storage & Movement: Store in a dry, ventilated area. Secure support legs before moving. Periodically check steel frame welds.
• Safety Operations: Ensure operators are trained. Keep away from rotating parts. Never exceed load capacity and control raw material moisture strictly.

After-Sales Support

• Quality Assurance: Free lifetime technical support.
• Technical Support: Free operational training and production line setup assistance. 24/7 online technical team with dedicated docking services for export clients.
• Parts Supply: Long-term, affordable supply of flat dies, rollers, cutters, and scrapers with fast global shipping to minimize commercial downtime.
• Export Services: End-to-end assistance including voltage customization, wooden packaging, fumigation, and customs documentation to seamlessly solve cross-border transport and usage challenges.
