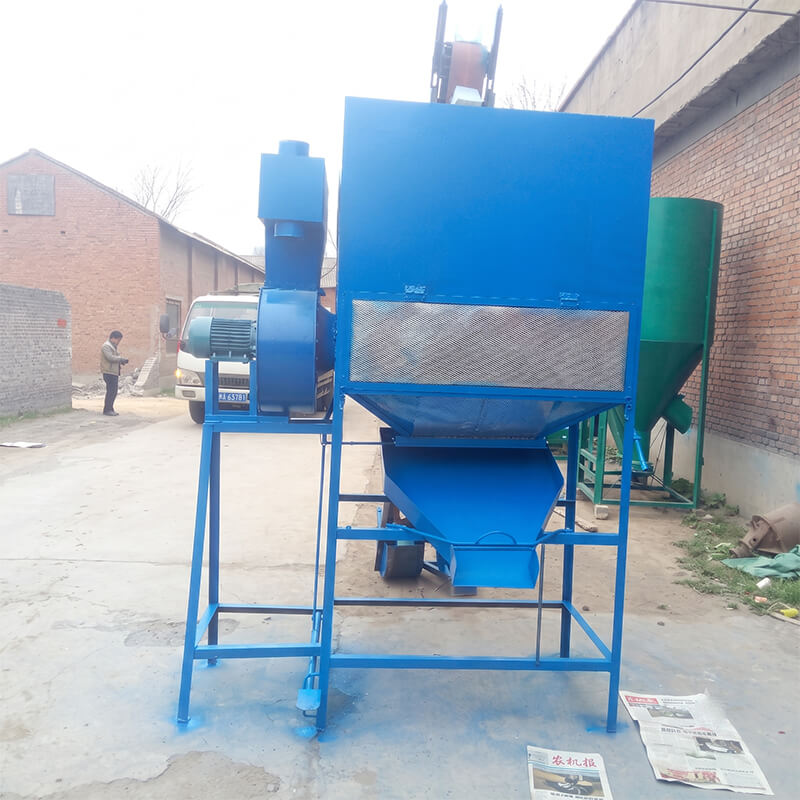

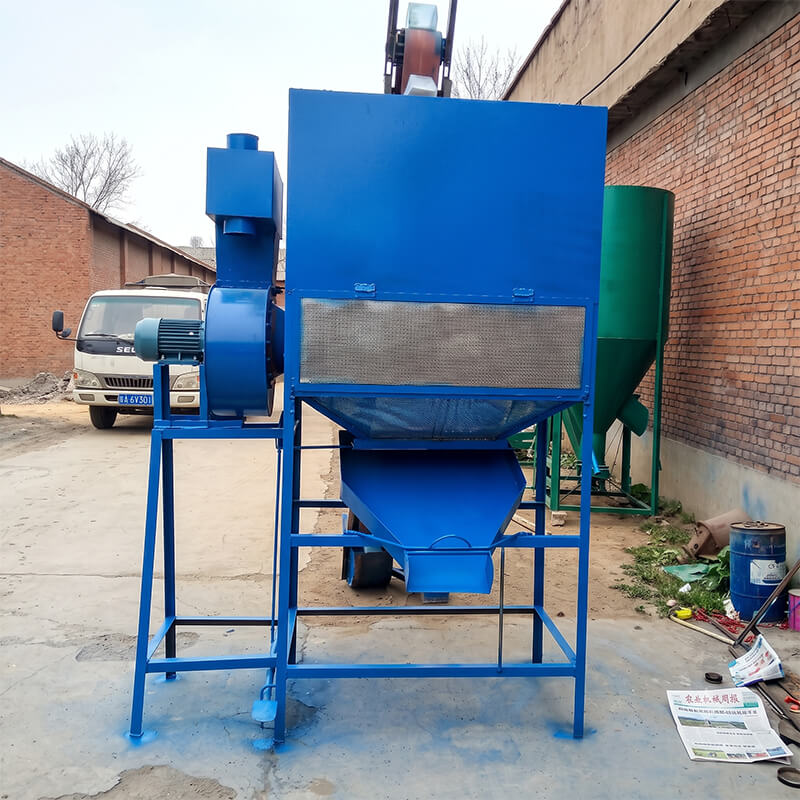

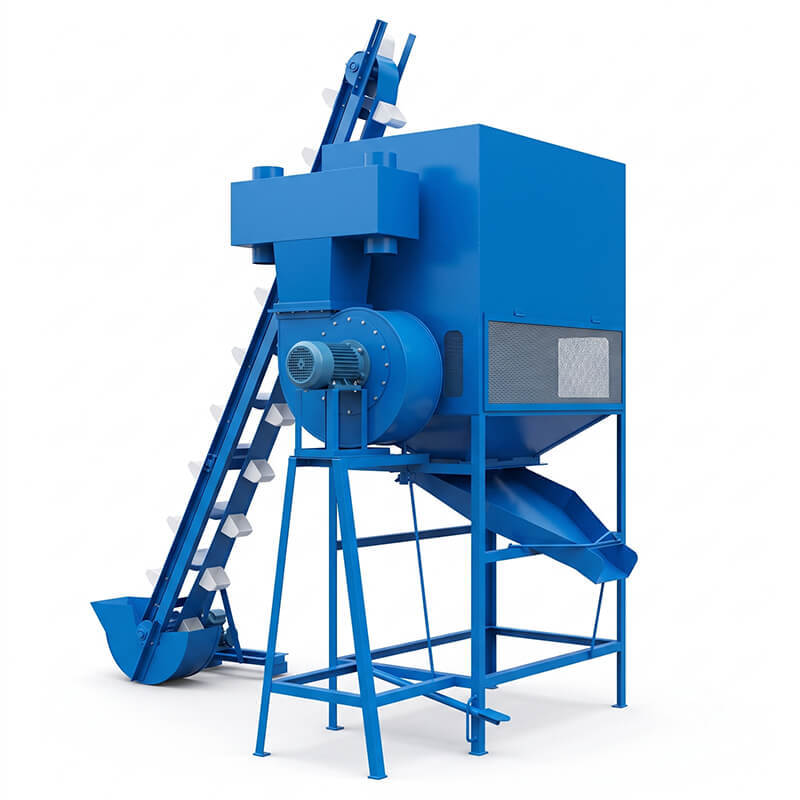

The feed pellet cooler is a core piece of equipment in feed processing lines. It rapidly cools and dries high-temperature pellets after extrusion, reducing pellet temperature and removing surface moisture to enhance feed quality and extend shelf life. It plays a crucial role in modern aquaculture and animal husbandry by improving feed quality and significantly boosting overall production line efficiency.
Working Principle
After high-temperature extrusion in the pellet mill, feed pellets typically reach 80-90°C. Direct packaging at this stage causes pellet deformation, mold growth, or nutrient loss. The core objective of the cooling process is to reduce the pellet temperature to near room temperature (typically ≤ ambient temperature + 5°C) through heat exchange. The specific process is as follows:

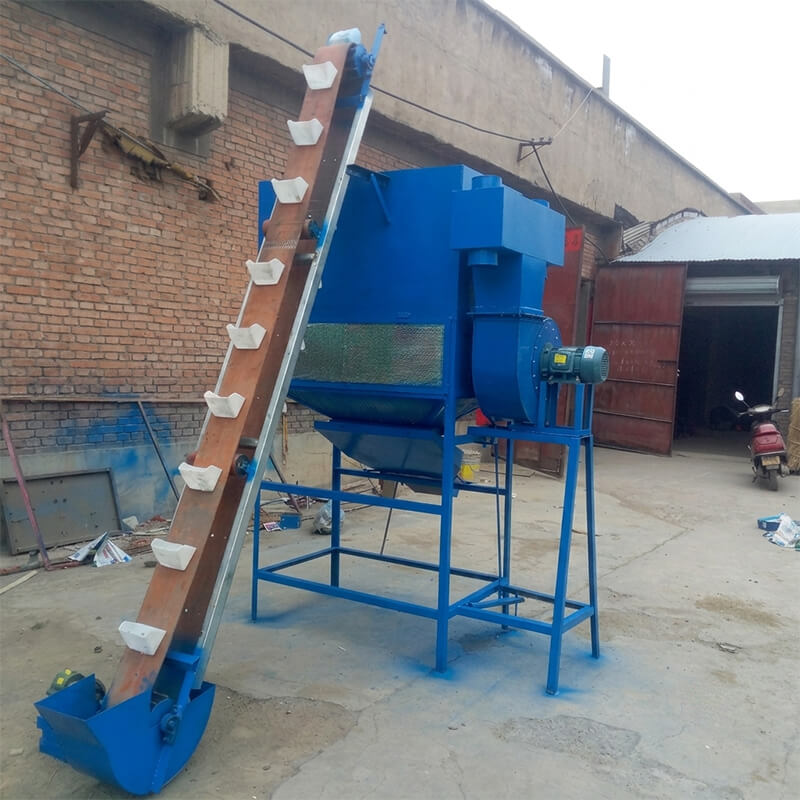

- Feeding and Distribution: High-temperature pellets enter the cooler's silo via a conveyor. The bottom of the silo features an adjustable distributor (such as a vibrating screen or rotary distribution plate) to ensure uniform pellet distribution across the cooling area, preventing localized accumulation that affects heat exchange efficiency.
- Counter-Flow Cooling Design: The equipment utilizes a counter-flow cooling structure where cold air flows upward from the bottom of the material layer, making reverse contact with the pellets descending from the top. This design maximizes the heat exchange area, allowing the cold air to fully absorb the heat from the pellets. For instance, with a pellet temperature of 85°C and cold air at 25°C, this counter-flow contact increases heat exchange efficiency by over 30%.
- Air Volume and Time Control: Variable frequency fans adjust the cold air flow (typically 5,000-20,000 m³/h). Combined with specific material layer thickness (usually 150-300 mm) and retention time (2-8 minutes), this achieves precise temperature control. For example, when processing pig feed pellets with a 200 mm layer thickness and an air volume of 12,000 m³/h, a 5-minute cooling period reduces the temperature to below 30°C.
Applicable Scenarios
Widely applied in the processing of livestock and poultry feed (e.g., pig and chicken feed), aquafeed, and pet food. It is particularly suitable for cooling and drying high-fat and high-protein feeds, effectively preventing pellet oxidation and deterioration. Key advantages include high cooling efficiency, relatively low energy consumption, and no addition of moisture to the feed.
Features and Advantages
- Nutritional Preservation: Feed undergoes high-temperature processing to eliminate bacteria and pathogens. Rapid cooling prevents the destruction of heat-sensitive nutrients, maintaining the feed's nutritional integrity.
- Extended Shelf Life: By quickly reducing the temperature, the cooler minimizes the risk of mold and spoilage, significantly extending the feed's shelf life and lowering storage costs.
- Improved Physical Properties: Cooled pellets exhibit better uniformity, flowability, and structural stability, facilitating easier subsequent packaging and transportation.
- Seamless Line Integration: Configured immediately after the pellet mill in the production line (following feeding, mixing, and pelletizing), it swiftly processes the high-temperature, high-pressure extruded pellets to maintain continuous mass production efficiency.
Selection Guide
When selecting a feed cooler, consider the equipment footprint, cooling capacity, energy consumption, and maintenance costs. These factors directly impact the overall layout and operating expenses of the production line. A well-configured setup optimizes production line efficiency and reduces operational risks.
Operational Guidelines
- Feeding Uniformity: Prevent pellet accumulation to avoid localized overheating or insufficient drying. It is recommended to install a level controller to monitor the material layer height in real-time.
- Air Volume Adjustment: Adjust the air volume based on pellet diameter (typically 2.5-8 mm) and initial moisture content. Reduce wind speed for smaller pellets to prevent them from being blown away.
- Routine Maintenance: Clean the air ducts and silo after each shift to prevent feed residue buildup from obstructing airflow circulation.
