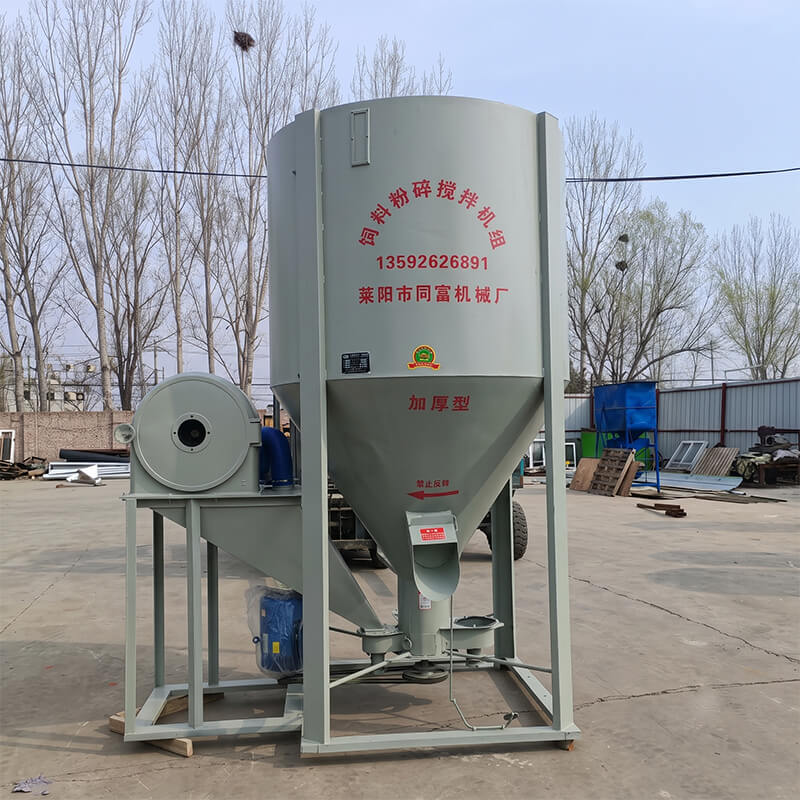

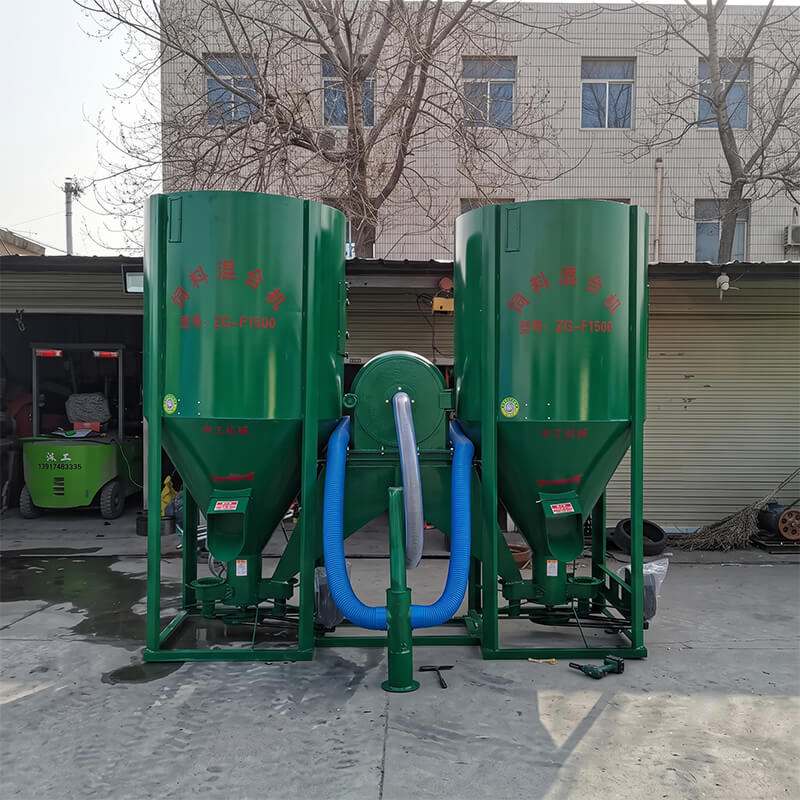

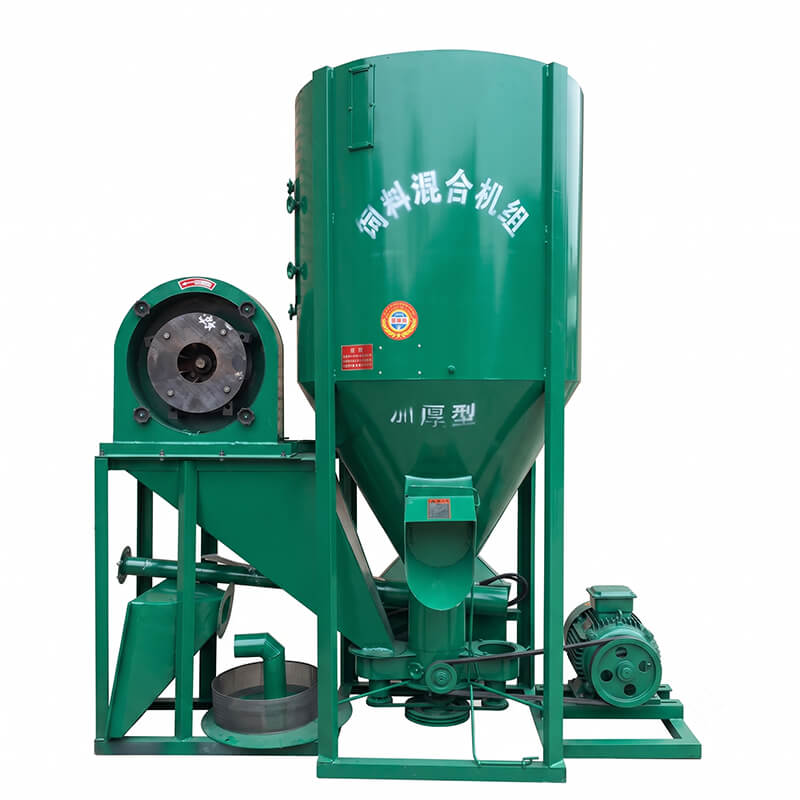

Industrial Integrated Feed Crusher and Mixer Machine

The Integrated Crusher and Mixer is an industrial and agricultural processing equipment that combines crushing and uniform mixing. Its core advantages include completing two processes in a single unit, saving space and labor, and achieving high mixing uniformity (over 90%). It is primarily applied in feed processing, construction, and food powder processing.

Working Principle

This equipment integrates a crushing system (hammer beating or grinding disc) and a mixing system (spiral lifting/scattering or drum rolling) into a single unit. After entering through the feed inlet, raw materials are rapidly crushed into granules or powder. They are then transported into the mixing chamber, where mechanical movement creates multi-directional circulation, completing the "crushing + homogenizing" process in one go. The working principle follows a continuous operation mode of "crush first, mix later" or "simultaneous crushing and mixing," significantly reducing material transfer steps.

Workflow

The operation is a continuous, streamlined process:

• Raw materials are fed through the inlet and conveyed to the crushing chamber.
• High-speed rotating components inside the chamber strike or grind the materials to the required fineness.
• The crushed materials enter the mixing chamber via internal channels or pneumatic conveying.
• The mixing components operate to thoroughly blend the various material components within a set time.
• The evenly mixed feed is discharged from the outlet, ready for packaging or direct feeding.

Product Advantages

• Reduced Process Transitions: Integrates crushing and mixing functions, eliminating the need to transfer materials between separate machines and simplifying operations.
• Space Optimization: The all-in-one design is highly compact compared to purchasing standalone crushers and mixers, effectively saving production floor space.
• Lower Labor Intensity: Continuous automated processing minimizes reliance on manual handling and intermediate interventions.
• High Mixing Uniformity: Materials enter the mixing stage immediately after crushing, reducing segregation and ensuring a highly uniform feed mixture.

Technical Parameters

Selection Guide

When selecting the right integrated feed crusher and mixer, consider the following aspects:

• Production Requirements: Determine the model and processing capacity based on daily feed processing volume to avoid underutilization or equipment overload.
• Raw Material Characteristics: Consider the primary materials being processed (e.g., grain-based energy feeds vs. high-fiber roughage). Different crushing mechanisms suit different materials.

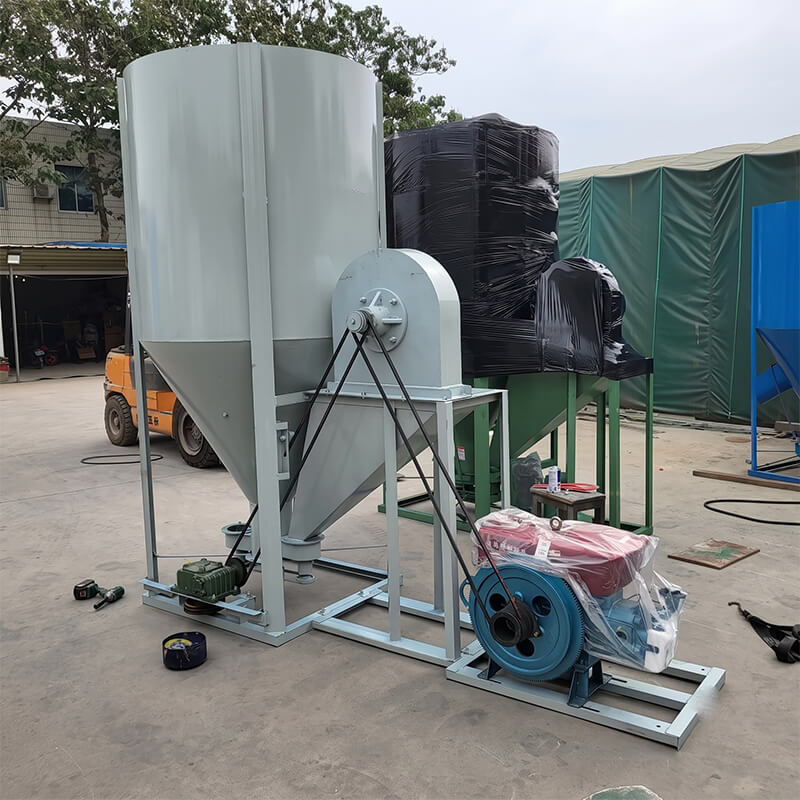

• Power Source: Assess the site's power supply. Electric motors are ideal for stable power access, while diesel engines offer flexibility for mobile operations or areas without reliable electricity.
• Material and Craftsmanship: Pay attention to the materials and manufacturing quality of key components (e.g., crushing hammers, mixing blades, inner walls), as this impacts durability and maintenance cycles.
• Safety Features: Ensure the equipment is equipped with essential safety guards, such as overload protection and emergency stop switches, to guarantee safe operation.

FAQ

Q: Can one integrated feed crusher and mixer process all types of feed ingredients?

A: Not necessarily. While these machines are highly adaptable, they are typically designed to process specific types of materials more efficiently. For instance, a machine optimized for grain crushing may experience reduced efficiency, blockage, or damage when processing tough or high-moisture stalks. Always identify your primary processing materials and consult the supplier regarding the equipment's applicable range.

Q: Is the crushing fineness adjustable?

A: Most integrated feed crushers and mixers offer adjustable crushing fineness, typically achieved by replacing screens with different mesh sizes. A smaller mesh yields finer materials. Users can select the appropriate screen based on the feed particle size requirements for the specific animal species and growth stage.

Q: What are the daily maintenance requirements?

A: Proper maintenance is key to long-term stable operation. Key practices include: cleaning the interior after each use to prevent residual material from molding and affecting future feed quality; regularly inspecting and tightening bolts; lubricating bearings and other required parts on schedule; monitoring the wear of vulnerable parts like hammers and screens for timely replacement; and thoroughly cleaning and storing the machine in a dry place if unused for extended periods.

Q: What safety protocols must be followed when operating this equipment?

A: Safety is the top priority. Read the manual carefully before operation to familiarize yourself with all controls and safety signs. Never reach into hazardous areas like the feed inlet or mixing chamber while the machine is running. Ensure the equipment is completely powered off and stopped before maintenance or cleaning. Operators must wear fitted work clothes to avoid entanglement in moving parts. Observe electrical safety, ensuring cables are intact and grounding is reliable.

Summary

In conclusion, as a vital tool in modern feed preparation, the integrated feed crusher and mixer delivers value by consolidating functions and optimizing workflows. For users who need to mix their own feed, understanding its working principles, advantages, limitations, selection criteria, and maintenance is foundational for effective utilization. By comprehensively evaluating actual needs and adhering to safety operation protocols, this equipment can efficiently support your production activities.
