Commercial 400 Flat Die Feed Pellet Machine

The 400 Model Flat Die Feed Pellet Machine is a heavy-duty commercial pelletizing equipment engineered for 10,000-ton capacity and comprehensive cross-border adaptability. Tailored for mega-scale breeding bases, large feed processing enterprises, export processing hubs, and large agricultural waste treatment projects, it bridges the high-capacity gap between the 300 model flat die and large ring die machines. Featuring a 400mm ultra-wide, thickened heavy-duty flat die core structure and versatile high-power configurations, it ensures efficient pelletizing for both concentrates and ultra-high crude fiber materials, delivering ultimate capacity and long-term stability.

Core Advantages

Built for mega-scale commercial and cross-border export demands, the 400 model differentiates itself from the 300 and 260 models through its 400mm ultra-wide heavy-duty flat die. It focuses on ultra-high capacity, superior wear resistance, intelligent operation, and global adaptability, targeting high-end clients in 10,000-ton farming, large commercial processing, and cross-border trade.

• 400mm Ultra-Wide Heavy-Duty Flat Die: Equipped with a standard thickened alloy steel flat die processed via triple vacuum quenching and deep carburizing. Hardness increases by 30% and lifespan extends by 80% compared to the 300 model, significantly reducing replacement costs and downtime. Ensures uniform stress distribution and tight, smooth pellets for concentrates. Processes ultra-high crude fiber materials (≤99%) without blocking, achieving a ≥98% molding rate with zero fragment waste. The effective width is 40% larger than the 300 model, supporting 72-hour continuous heavy-duty operation.

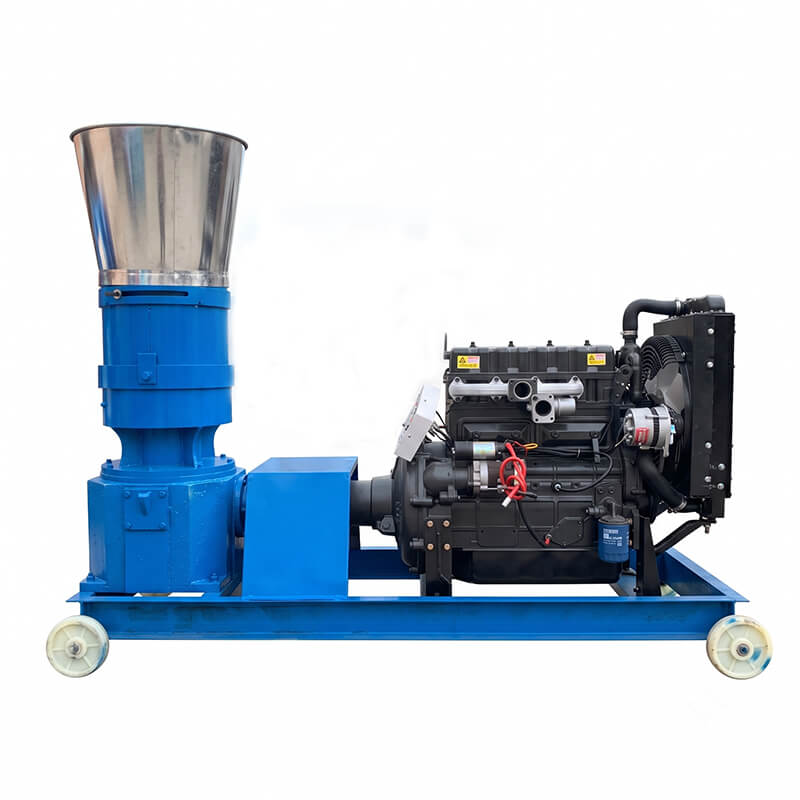

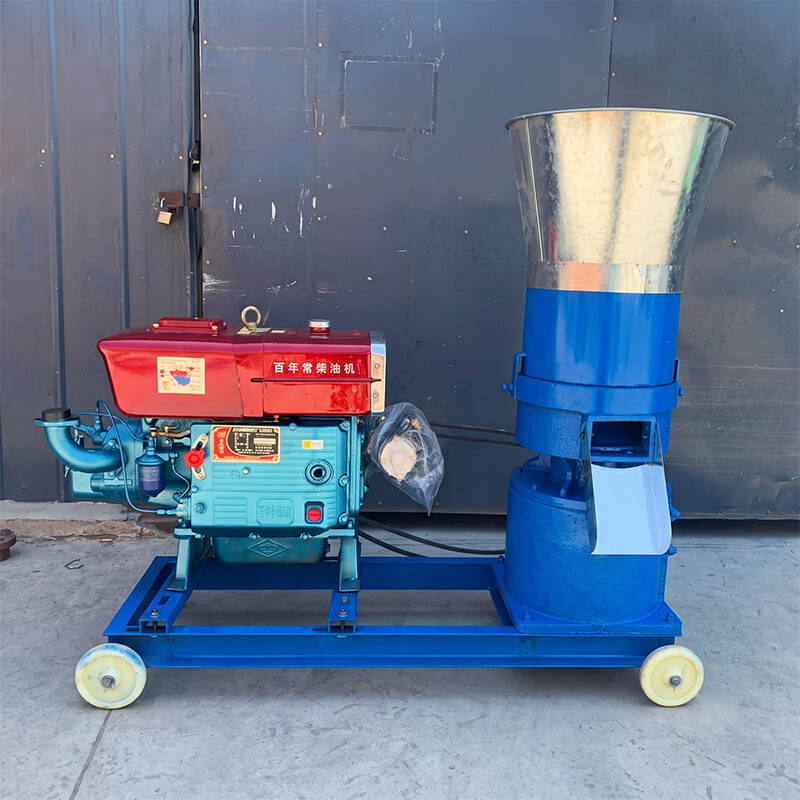

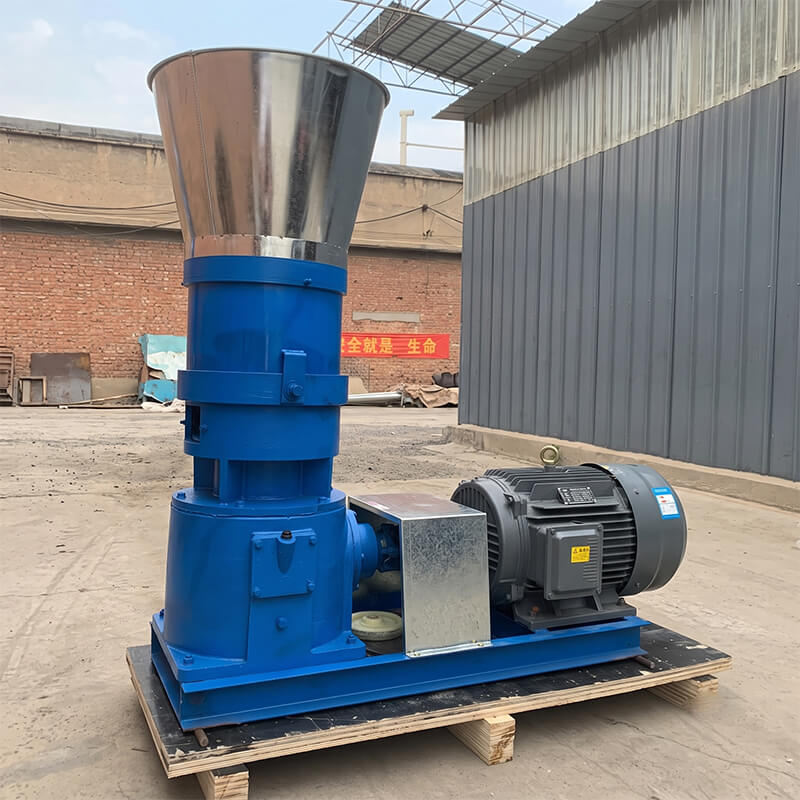

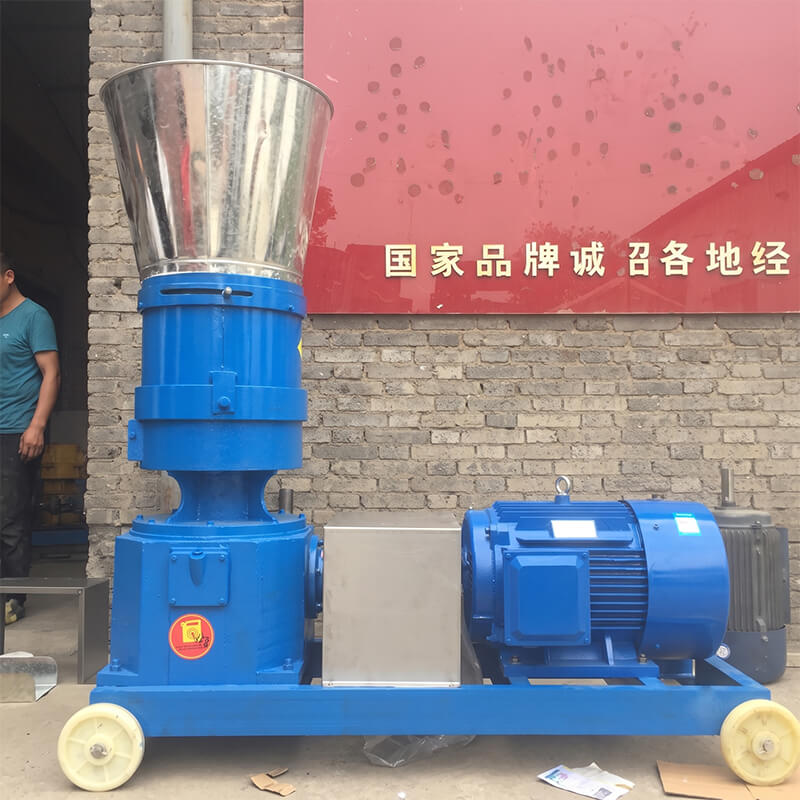

• High-Power & Multi-Power Options: Custom ultra-high-power system. Standard 30kW national standard pure copper motor (380V 3-phase), upgradable to 37kW. Supports high-power diesel (50-80HP) and diesel-electric hybrids for remote, off-grid, or outdoor clusters. Dual differential and universal joint linkage ensures smooth transmission, low noise, and over 99% transmission efficiency for 24/7 continuous operation.
• Direct Processing Without Pre-treatment: Processes dry materials (moisture ≤18%) and wet materials (moisture ≤40%) directly. Conventional materials (corn, soybean meal) require no crushing; high-fiber materials (straw, wood chips, ≤99% ratio) require no drying. The 75-90℃ intelligent constant temperature curing improves feed digestion by 25-30% and eliminates pathogens. Final pellet moisture is ≤12%, meeting storage and export standards.
• Full-Dimensional Customization: Replaceable flat dies (2-3mm for poultry, 4-6mm for regular livestock, 6-8mm for large livestock/ruminants). Customizable pellet length, hardness, and density. Compliant with ISO, CE, and FDA standards. Adapts to global voltages (110V-480V) and diverse commercial applications (organic fertilizer, export-grade pellets).

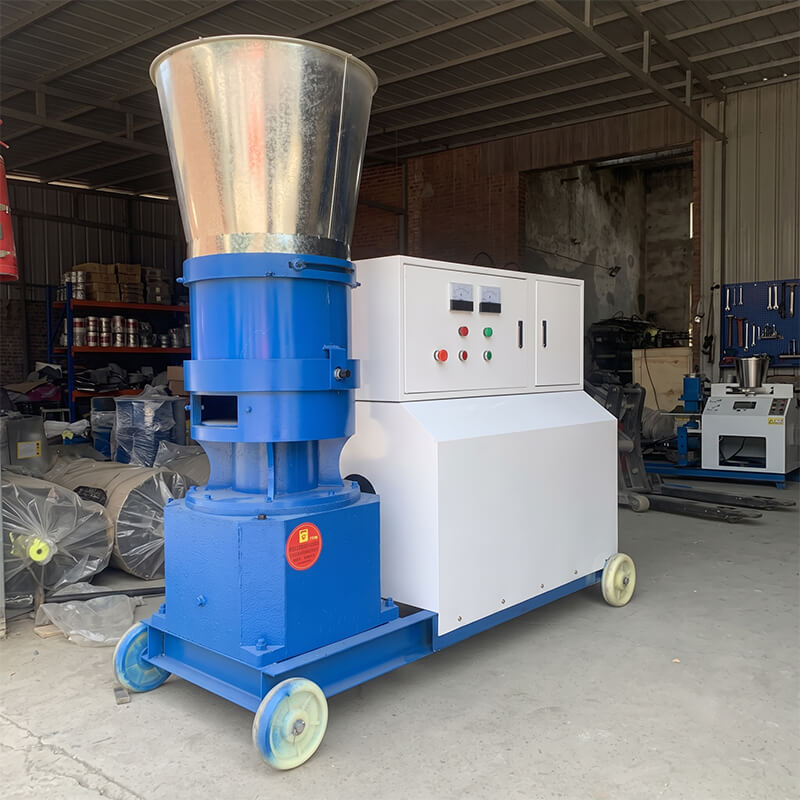

• Intelligent Operation & Maintenance: Heavy-duty compact design with ultra-heavy universal wheels and adjustable supports. Fully intelligent touch PLC panel (one-click start, automatic feeding, temp control, alarm, clearing, and discharging). Six-fold safety protection prevents equipment damage. Quick-release die (under 8 minutes replacement). Built-in high-pressure cleaning system requires only 2-3 personnel for daily maintenance without specialized training.
• Cross-Border Adaptability & Profitability: Premium export-grade alloy steel construction. Supports wooden packaging and fumigation for sea, land, and air freight. Processes local agricultural waste to maximize profit margins. Supports diverse applications like pet food, organic fertilizer, and biomass pellets, enabling efficient profitability for both independent processing and bulk export orders.

Detailed Technical Specifications

The parameters clearly define the equipment's performance. Divided into standard commercial, enhanced heavy-duty, diesel-powered, hybrid, and ultra-high-capacity models. Designed for mega-scale commercial and export needs.

Application Scenarios & Scope

Leveraging the 400mm ultra-wide die, ultra-high capacity, and universal adaptability, the 400 model focuses on mega-scale commercial and 10,000-ton farming scenarios, along with cross-border export requirements.

• 10,000-Ton Scale Livestock Breeding: Standardized feed processing for poultry and livestock. Customizes pellet specifications based on growth stages. Saves 35-40% feed compared to powder. Low-temperature curing eliminates pathogens and boosts absorption.
• Mega-Scale Commercial Processing: Ideal for large feed plants and regional cooperatives. Requires only 2-3 operators for mass production. Utilizes local cheap materials (straw, wood chips) for maximum profit margins.
• Cross-Border Export Processing: Supports 110V-480V, ISO/CE/FDA standards, export wooden packaging, and fumigation. Produces stable, storage-resistant pellets suitable for global export, enhancing international market competitiveness.
• Diverse High-End Applications: Multi-purpose processing for organic fertilizer, biomass pellets, pet food, and agricultural waste recycling (straw, rice husks). Promotes green, sustainable development.
• Heavy-Duty Emergency & Outdoor Clusters: Diesel and hybrid models ensure uninterrupted operation in remote, off-grid, or emergency scenarios. Ideal for field breeding bases and disaster recovery processing.

Working Principle

The 400 model utilizes an energy-saving direct extrusion principle, integrating intelligent closed-loop constant temperature control, heavy-duty dual linkage transmission, and precise cutting technology.

• Feeding Stage: Materials (dry ≤18%, wet ≤40% moisture) enter the oversized inlet without pre-treatment. Intelligent feeding evenly distributes materials across the 400mm die. Initial run requires oil-mixed feed to adjust the roller gap (2.0-2.8mm).
• Extrusion & Pelletizing: High-speed rotation drives 6 rollers to press materials into the die holes. The 75-90℃ constant temperature curing maximizes nutrient retention (especially for high-fiber materials) and eliminates harmful microorganisms.
• Cutting & Discharging: Heavy-duty adjustable stainless steel blades cut pellets uniformly (5-35mm adjustable length). Cutting uniformity exceeds 99.8%. Discharged at ≤12% moisture, ready for bulk storage and international shipping once cooled.
• Safety & Stability: Equipped with 8-fold safety protection (overload, over-temp, block protection, etc.). Direct transmission and shock-absorbing base reduce noise to ≤72dB. Zero oil leakage, supporting 72-hour continuous heavy-duty operation.

Product Value & Benefits

Compared to traditional methods and 300/280 models, the core value lies in "ultra-high capacity, heavy-duty longevity, intelligent operation, and global adaptability."

• Upgraded Capacity & Durability: 40% larger contact area, 80% higher efficiency than the 300 model. 98% molding rate. Triple vacuum quenching extends component lifespan by 80%.
• Energy-Saving & Cost-Reduction: 99% transmission efficiency reduces energy consumption by 28%. Direct processing eliminates pre-treatment labor and equipment costs.
• All-Scenario Adaptability: 5 power options (including diesel/hybrid) eliminate grid limitations. Multi-spec dies cover all breeding, export, and commercial order needs.
• Intelligent Maintenance: 2-3 person operation. Quick-release die and automatic cleaning reduce labor costs. Core components are durable and require no frequent replacements.
• Enhanced Nutrition & Safety: Constant temperature curing boosts fiber absorption by 45% and eliminates pathogens, increasing livestock weight gain and commercial pellet competitiveness.
• Cross-Border Competitiveness: Global certifications (ISO, CE, FDA) and tailored export services ensure seamless international trade and precise independent website keyword layout.

Daily Maintenance & Precautions

Proper maintenance extends equipment lifespan and ensures stable operation for heavy-duty commercial scenarios.

• Pre-Startup Check: Inspect connections, roller-die gap (2.0-2.8mm), and lubrication. Run with oil-mixed feed for initial break-in.
• Operation Monitoring: Prevent hard objects (metal, stones) from entering. Stop immediately if clogged; never force a restart to avoid motor overload.
• Post-Operation Cleaning: Flush die, rollers, and outlet using the high-pressure interface to prevent material spoilage. Replace severely worn parts promptly.
• Regular Maintenance: Lubricate transmission parts regularly. Inspect circuits monthly and conduct comprehensive checks quarterly. Check diesel fuel lines for non-electric models.
• Placement & Movement: Store in flat, dry, ventilated areas. Secure support legs before moving to prevent tipping and equipment damage.
• Operator Safety: Basic training required. Keep away from rotating parts. Strictly avoid equipment overloading.

After-Sales Guarantee

We provide comprehensive, high-end after-sales support for the 400 model, building trust and ensuring seamless operation for global clients.

• Quality Assurance: Free lifetime technical support for non-human faults during the warranty period.
• Technical Support: 24/7 expert online assistance, free training, and exclusive support channels for cross-border clients.
• Spare Parts Supply: Long-term availability of dies, rollers, and blades with fast global shipping to minimize processing downtime.
• Export Services: Comprehensive assistance with voltage adjustments, wooden packaging, fumigation, and customs documentation to simplify cross-border operations.
